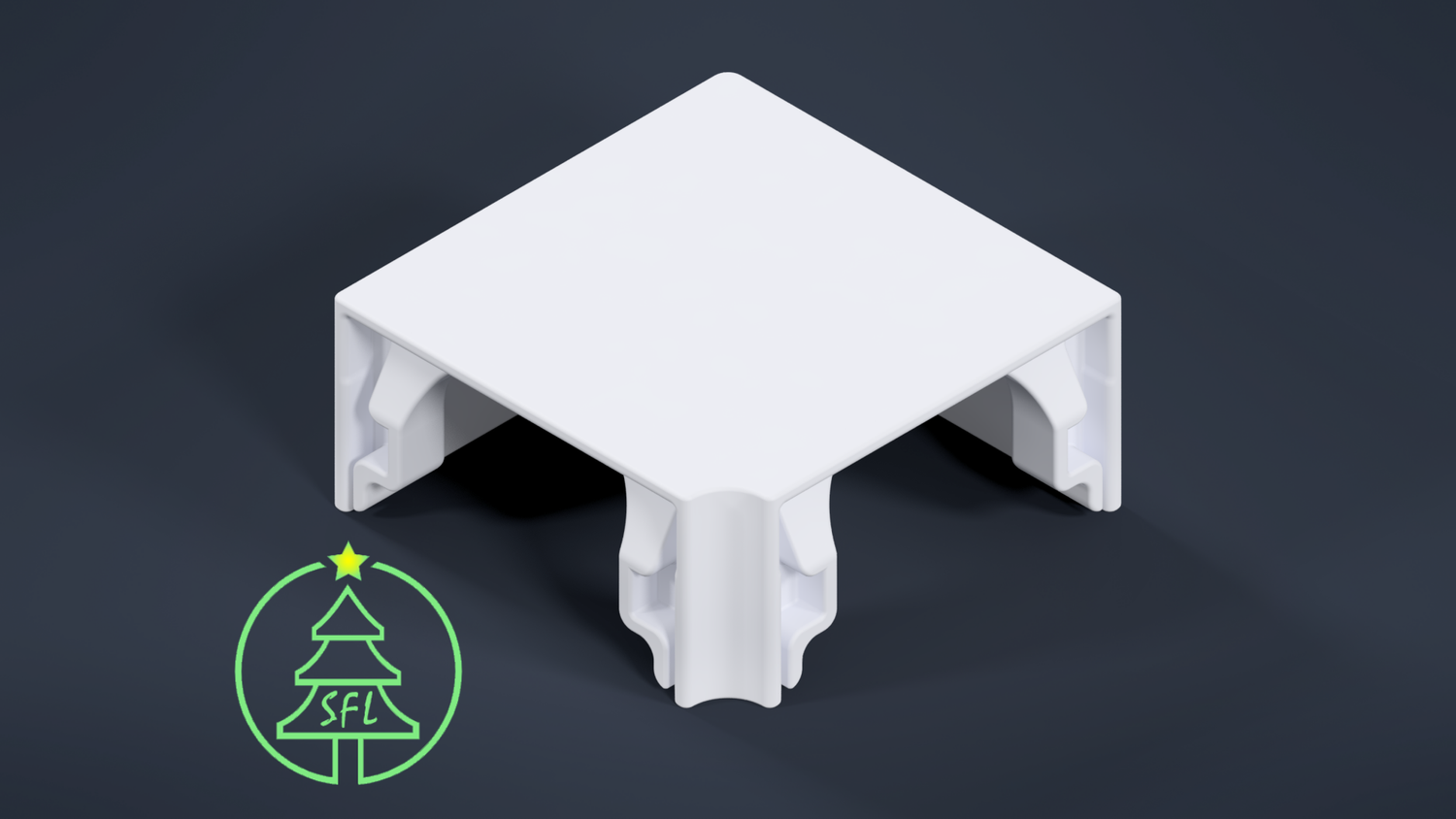

This is an angled bracket used with the Puck Track Mounting system. Each bracket gives your Puck Track mounting system a professional finish. These components are printed with PETG which is UV resistant and is intended to last for many years to come.
Several common roof pitch angles are available as shown below. Custom angles can be created as well.
ROOF PITCH
ANGLE
1:12
170.480
2:12
161.080
3:12
151.920
4:12
143.140
5:12
134.760
6:12
126.860
7:12
119.480
8:12
112.620
9:12
106.260
10:12
100.380
11:12
94.980
12:12
90.000
13:12
85.420
14:12
81.200
15:12
77.320
16:12
73.740
These end caps were designed to work with the Puck Track mounting system offered at YourPixelStore.
Dimensions:
Length: Varies
Width: Varies
Height: 26.5mm
Styles
Blank Angled Horizontal
Blank angled corner bracket with the the desired degree for the Bullet Track mount
Has no holes for pixels
Need other accessories for your Bullet Track installation? Check out our other designs that work with the Bullet Track mounting system.
